Thuis /Producten/CTP Plaatmachine/Corrugated Carton Printing VLF CTP Printing Plate Machine T1600M with 1470x1180mm Plate Size and 25 Plates Per Hour Using 830nm Thermal CTP Aluminum Plate

Corrugated Carton Printing VLF CTP Printing Plate Machine T1600M with 1470x1180mm Plate Size and 25 Plates Per Hour Using 830nm Thermal CTP Aluminum Plate

1SET
MOQ
Onderhandelbaar
Prijs
Corrugated Carton Printing VLF CTP Printing Plate Machine T1600M with 1470x1180mm Plate Size and 25 Plates Per Hour Using 830nm Thermal CTP Aluminum Plate
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Drukplaatgrootte: 1470x1180mm
Werksnelheid: 25 borden per uur
Min. plaatgrootte: 400 mm x 400 mm
Machinegrootte: 236x191x122cm
Plaatdikte: 0,15 mm tot 0,30 mm of 0,27 mm tot 0,40 mm
Oplossing: 2400/2540 dpi
Basis informatie
Plaats van herkomst: China
Merknaam: ECOOGRAPHIX
Certificering: CE
Modelnummer: T1600SX
Betalen & Verzenden Algemene voorwaarden
Verpakking Details: Standaard exportverpakking
Levertijd: 30DAGEN
Betalingscondities: L/C, T/T
Productomschrijving
Corrugated Carton Printing VLF CTP Printing Plate Machine T1600M
Product Overview
The EcooGraphix VLF (Very Large Format) Thermal CTP Machine T1600M is designed for high-volume plate production in corrugated carton printing and large-format applications, delivering exceptional output quality with minimal operator intervention.
Applications
Ideal for A0/B0 paper size posters, wall charts, large books, catalogs, yellow pages, packaging processing, and plate-making centers. Capable of producing 14-19 plates per hour.
Key Features
  • Maximum plate size: 1,680 × 1,350mm
  • Reduced manpower requirements with high stability and perfect output quality
  • Compatible with both UV and thermal plates for lower production costs
  • Automatic plate loading and unloading for improved efficiency
  • Full-automatic printing capability when combined with autoloader, processor, and stacker
  • Single operator can manage entire output process
Application Samples

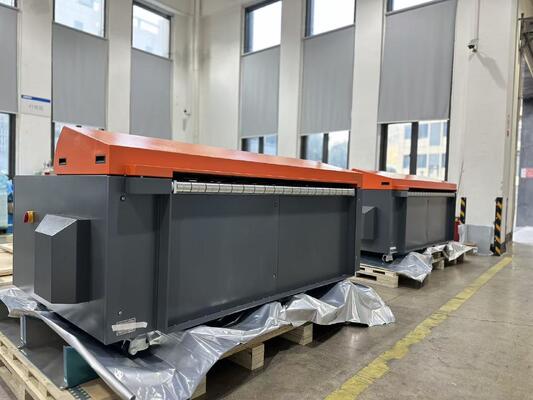

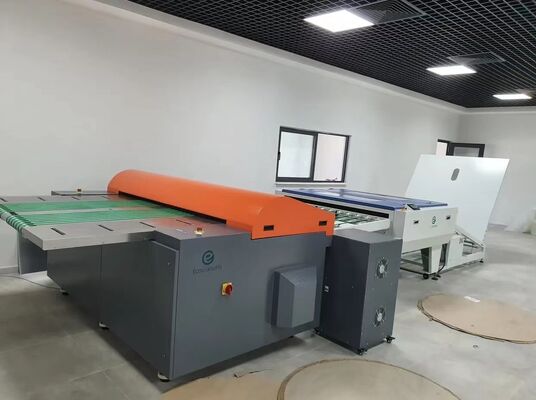

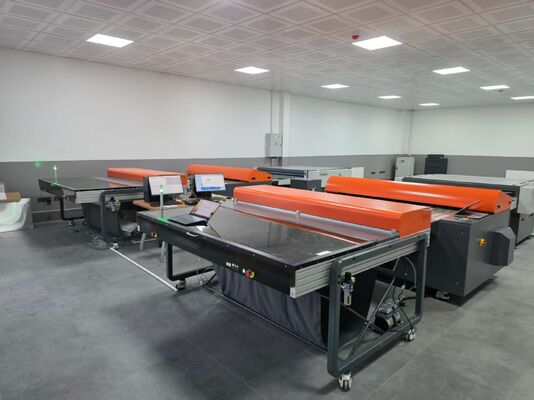

Corrugated Carton Printing VLF CTP Printing Plate Machine T1600M with 1470x1180mm Plate Size and 25 Plates Per Hour Using 830nm Thermal CTP Aluminum Plate 0 Corrugated Carton Printing VLF CTP Printing Plate Machine T1600M with 1470x1180mm Plate Size and 25 Plates Per Hour Using 830nm Thermal CTP Aluminum Plate 1 Corrugated Carton Printing VLF CTP Printing Plate Machine T1600M with 1470x1180mm Plate Size and 25 Plates Per Hour Using 830nm Thermal CTP Aluminum Plate 2 Corrugated Carton Printing VLF CTP Printing Plate Machine T1600M with 1470x1180mm Plate Size and 25 Plates Per Hour Using 830nm Thermal CTP Aluminum Plate 3 Corrugated Carton Printing VLF CTP Printing Plate Machine T1600M with 1470x1180mm Plate Size and 25 Plates Per Hour Using 830nm Thermal CTP Aluminum Plate 4
Technical Specifications
Model T-1600MX
Exposing Method External Drum
Image System 825nm laser
Output Speed 22 plates/hour at 1630mm × 1325mm / 2400dpi
Plate Sizes Max: 1680mm × 1350mm; Min: 650mm × 550mm
Exposing Size Max: 1680mm × 1336mm
Media Type Positive/Negative Thermal CTP Plate or Non Chemical Plate
Plate Thickness 0.15mm to 0.30mm or 0.27mm to 0.40mm (alternative)
Resolution Standard: dual resolutions 2400dpi and 1200dpi or optional 2540dpi and 1270dpi. Variable high resolution option: maximum up to 10800dpi at fast scan direction. 12800DPI available upon requirement
Repeatability ±0.01mm (continuous exposing for 4 times or above at 23℃ and 60% humidity)
Interface Optical Fiber
Plate Loading Semi automatic (alternative autoloader system)
Net Weight 1800kg
Machine Size (W×L×H)mm 2400 × 1430 × 1110
Power Supply 3 phase 380V, power consumption (peak value): 5.5KW
Operation Environment Recommended temperature: 21-25℃; Allowed temperature: 15-30℃, humidity: <70%RH
This industrial-grade CTP system combines high-speed production with exceptional precision, making it an ideal solution for large-format printing operations requiring reliable, automated plate-making capabilities.
