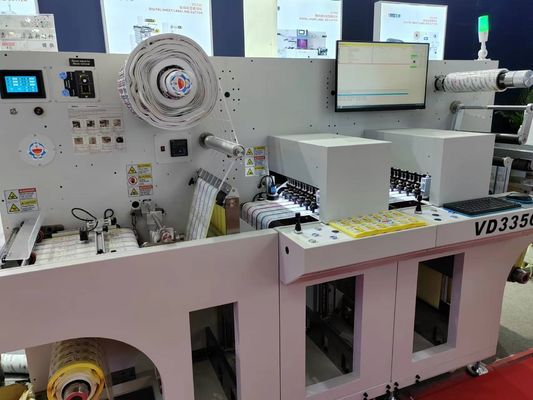

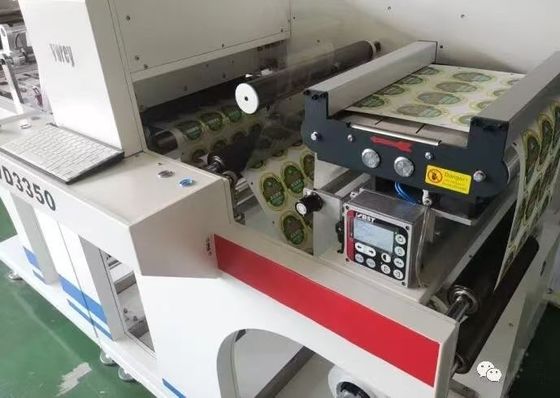

Digital Roll To Sheet Laser Die Cutter with Max 27m/min Cutting Speed and Max 330mm Label Width

1Set
MOQ
Onderhandelbaar
Prijs
Digital Roll To Sheet Laser Die Cutter with Max 27m/min Cutting Speed and Max 330mm Label Width
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Max roldiameter: 450 mm
Max Label Width: 330 mm
Snijbladen: Maximum 4pcs
Snijsnelheid: Maximum 27m/min
Garantie: Een jaar
Gewicht: 1400kgs
Maximale breedte: 288 tot 330 mm
Toepassingen: Matrijzenknipsel, het Lamineren, het Scheuren, Bladknipsel
Markeren:

Max 27m/min Cutting Speed Laser Die Cutter

,

Max 330mm Label Width Digital Die Cutting Machine

,

Max 4pcs Cutting Blades Label Die Cutter
Basis informatie
Plaats van herkomst: CHINA
Merknaam: ECOOGRAPHIX
Certificering: CE
Modelnummer: VD3350L
Document: Digital Label Die Cutter VD...0 .pdf
Betalen & Verzenden Algemene voorwaarden
Verpakking Details: Standaard exportpakking
Levertijd: Ongeveer 20 dagen
Betalingscondities: L/c, t/t
Levering vermogen: 300set
Productomschrijving
Digital Roll To Sheet Label Laser Die Cutter With Laminating

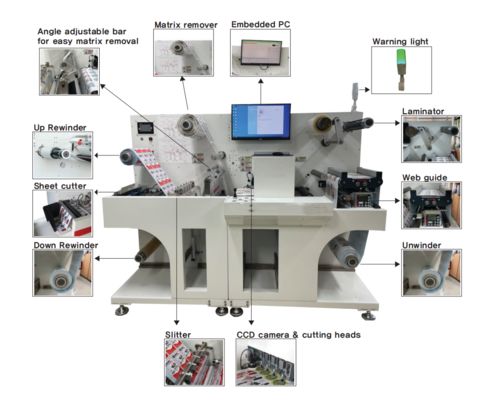

The laser die-cutting machine is a digital processing device integrating multiple advanced technologies, combining automatic label material conveyor, automatic web guide, laser flying cutting, and automatic waste removal into one system.
It is suitable for diverse processing solutions ranging from roll-to-roll to roll-to-sheet applications. The machine efficiently handles precision cutting requirements for non-metallic materials such as adhesive labels, PP synthetic paper, PVC film, cardboard, and offset paper, encompassing full-cut, half-cut, flying line, punching, and waste removal composite processes.
With its mold-free digital processing capability, the system directly drives the cutting process through electronic file data, significantly improving production efficiency for small-batch orders, effectively shortening product delivery cycles, and providing flexible and efficient smart manufacturing solutions for personalized customization needs.
Product Features
  • High precision feeding system Utilizes ultrasonic web-guide system to ensure perfect material feeding.
  • Cold laminating Includes cold laminating function for bright, perfect labels. Back liner removal is optional.
  • Digital die-cutting system Features high precision screw transmission system with maximum speed of 9m per minute. Individual control for 4 heads with auto-adjust distance function.

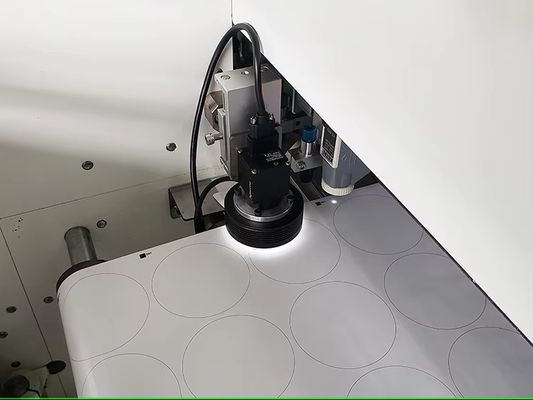

  • CCD identify system CCD camera position and identify system recognizes sequences for automatic file changing and next graphic cutting.
  • Waste removing system Dual mechanical force expansion control with multi-angle waste discharge frame ensures uniform waste removal and clean products.
  • Built-in sheet cutting system Optional built-in PC350 slitter for wired cutting and synchronous die-cutting/sheet cutting.
Digital Roll To Sheet Laser Die Cutter with Max 27m/min Cutting Speed and Max 330mm Label Width 0 Digital Roll To Sheet Laser Die Cutter with Max 27m/min Cutting Speed and Max 330mm Label Width 1 Digital Roll To Sheet Laser Die Cutter with Max 27m/min Cutting Speed and Max 330mm Label Width 2 Digital Roll To Sheet Laser Die Cutter with Max 27m/min Cutting Speed and Max 330mm Label Width 3 Digital Roll To Sheet Laser Die Cutter with Max 27m/min Cutting Speed and Max 330mm Label Width 4
