Name: 216mm Digital Label UV Press with 1200*600 dpi Resolution and 10m/min - 75m/min Printing Speed
Brand: Hangzhou Ecoographix Digital Technology Co., Ltd.
SKU: LABEL SMART
Price: 250,000.35 USD
Availability: InStock

Kenmerken Galerij Productomschrijving Verzoek om een Citaat

Kenmerken

Specificaties

Oplossing: 1200*600 dpi

Afdruksnelheid: 10 m/min - 75 m/min

Veranderlijk Beeldsysteem: PDF, Facultatief streepjescodesysteem

Substraten: PET-film, gecoat papier, synthetisch papier, kunstpapier, enz.

Garantie: Een jaar

Gewicht: 2800kgs

Afdrukkleuren: CMYK/W+CMYK/W+W+CMYK

Markeren:

216mm Digital Label UV Press

1200*600 dpi Label Printing Machine

10m/min - 75m/min UV Inkjet Label Printer

Basis informatie

Plaats van herkomst: CHINA

Merknaam: EcooGraphix

Certificering: CE

Modelnummer: LABEL SMART

Document: Digital Label UV Inkjet Pri...ix.pdf

Betalen & Verzenden Algemene voorwaarden

Verpakking Details: Standaard exportpakking

Levertijd: 30 dagen

Betalingscondities: T/t

Levering vermogen: 300set

Galerij

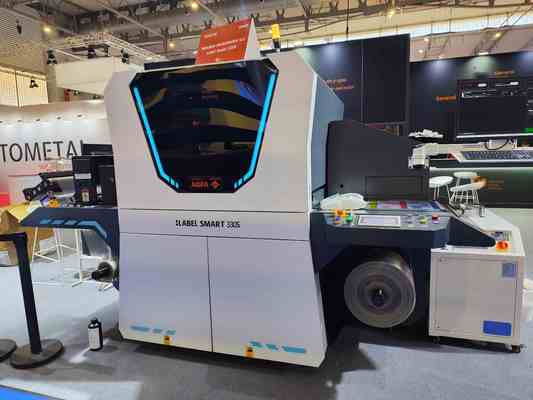

216mm Digital Label UV Press with 1200*600 dpi Resolution and 10m/min - 75m/min Printing Speed

Productomschrijving

CMYK and White 216mm Digital Label UV Press

6 Colors Digital Label Machine UV Inkjet Label Printer

The Label Smart is an easy-to-operate entry-level digital label press offering low investment cost with high efficiency and effectiveness. This versatile machine handles a wide range of materials including films (PET, BOPP, PE, BOPA), label papers (PE label), pre-pressed materials (PET, ALU, PE), and various paper types, helping customers diversify their label market offerings.

The system features large roll feeding, anti-collision induction, web guide, double-sided dust removal, corona unit, mark tracking electric eye, LED curing, intelligent industrial control, and water cooling system. Equipped with imported high-precision industrial nozzles, it offers four-color configuration options to meet specific customer requirements.

With white ink configuration, the press achieves maximum full-color printing speeds of 50m/min at resolutions up to 600×1200dpi, delivering accurate, stable colors across various printing materials. Using Agfa environmentally friendly ink, it produces vibrant, odor-free prints.

Advantages of UV Inkjet Printing Press

6-color digital printing covering 95% of Pantone colors
New upgraded design for simple operation
Fully automatic integrated program to improve efficiency
Built-in quality inspection device for real-time color inspection and quality control
Remote operation and maintenance support
Upgraded printing control software to optimize production process

Model	Label Smart 108S	Label Smart 216S	Label Smart 330S
Printing Technology	Piezoelectric Inkjet
Print Method	Roll to Roll, One-Side
Color Configuration	CMYK/W+CMYK/W+W+CMYK
Number Of Channels	6
Maximum Speed	50 m/min (CMYK); 25 m/min (CMYK + W)
Resolution	600×600dpi; 600×1200dpi
Ink Type	UV Ink
Curing Method	UV LED
Media Width	80-330mm
Maximum Print Width	108mm	216mm	324mm
Media Thickness	50-400 μm
Media Type	PET, BOPP, PE, BOPA, PP, Coated paper, Synthetic paper, Art paper, etc
Maximum Media Roll Diameter	600mm
Power Supply	380V
Power	15kW	30kW
Compressed air
Compressed air	＞6.5MPa
Air consumption	＞10L/min
Environment
Operation Temperature	20 - 27°C
Operation Humidity	40 - 70% Relative humidity
